| 1.適用范圍:Seope | 本規格書適用于駐極體式電容傳聲器 This spccification applies electret condenser microphone(E.C.M) | ||||||||||||
| 2.型號: Model No. | H6050P002A | ||||||||||||
| 3.使用條件:Operation Condition | |||||||||||||
| 3.1 環境溫度 Temperature | -25～+70℃ | ||||||||||||
| 3.2 相對濕度 Rel.Humidity | 35%～85%RH | ||||||||||||
| 3.3 大氣壓力 Pressure | 86～106Kpa | ||||||||||||
| 3.4 環境噪聲 Environmental Noise | 最大(Maximum):36dB | ||||||||||||
| 3.5 工作電壓范圍 Operation Voltage | 1～10VDC | ||||||||||||
| 4.電性能 Electrical Characteristics | |||||||||||||
| 4.1 基準工作電壓 StandardOperation Voltage | 3.0VDC | ||||||||||||
| 4.2 阻抗 Impedance | 最大(Maximum):2.2KΩ | ||||||||||||
| 4.3 消耗電流 Current Consumption | 最大(Maximum):0.5mA | ||||||||||||
| 4.4 靈敏度 Sensitivity | -60dB±2dB Vs=3.0V R1=2.2KΩ (0dB=1V/Pa,1KHZ) | ||||||||||||
| 4.5 指向性 Directivity | 全指向性(Omni-directional) | ||||||||||||
| 4.6 信噪比 S/N Ration | 最小(Minimum):58dB | ||||||||||||
| 4.7 測試環境溫度 Test Temperature 測試環境濕度 Rel.Humidity | 20℃±2℃ 45%～65%RH | ||||||||||||
| 4.8 測試電路圖 Schematic Diagram Vs=3.0V ; R1=2.2KΩ; C=5uF |  | ||||||||||||

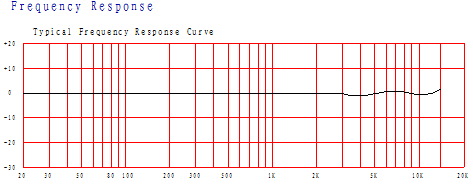

| 4.9 頻率響應曲 Frequency Response |  | ||||||||||||
| 5.機械性能 Mechanical Characteristics | |||||||||||||
| 5.1 尺寸 Dimension | Φ6.0±0.1×5.0±0.1 | ||||||||||||
| 5.2 重量 Mass | ≤0.3g | ||||||||||||
5.3 外型圖 Dimensional Drawing | |||||||||||||
| 6.可靠性試驗 Reliability Tests 在下列試驗完成后,置于溫度為20℃,相對濕度為65%的環境中恢復2小時后進行測試,靈敏度與初始 靈敏度相差在±3dB以?xún)?nèi)。 The sensitivity to be within ±3dB of initial sensitivity affer 2 hours conditioning at 20℃ | |||||||||||||
| 6.1 震動試驗 Vibration Test | 振幅 (Amplitude): 1.52mm 持續范圍 (Duration): 1minute 頻率范圍 (Frequency range): 10Hz～55Hz 3個方向，各2小時 2 hours in each of 3 axes | ||||||||||||
| 6.2 跌落試驗 Drop test | 不帶包裝的跌落到水泥地上 (Drop a unit unpacked onto a board) 高度 (Height) 1m 次數 (Cycle) 6(1 each plane) | ||||||||||||
| 6.3 高溫試驗 Low temperature Test | 溫度 (temperature): +70℃ 放置時間 (Duration): 200hours | ||||||||||||
| 6.4 低溫試驗 Low temperature Test | 溫度 (temperature): -20℃ 放置時間 (Duration): 200hours | ||||||||||||
| 6.5 濕度試驗 Statical Humidity Test | 溫度 (temperature): +60℃ 相對濕度 (Relative humidity) 90～95% 放置時間 (Duration): 200hours | ||||||||||||
| 6.6溫度循環試驗 Temperature Cycle Test | -25℃←→20℃←→70℃←→20℃ 5次 (30m) (10m) (30m) (10m) 5cycles | ||||||||||||
| 6.7 溫度聚變?cè)囼?yàn) Temperature Change Test | 低溫 (Low temperature) -40℃ 高溫 (Low temperature) +85℃ 轉化時間 (Changeover time) 30min 放置時間 (Duration) 60min 次數 (Cycle) 32 | ||||||||||||
| 6.8 沖擊試驗 Shocks | 脈沖波形 Pulse Shape 正弦半波 Half Sinusoidal 脈沖寬度 Pulse Duration 11ms 加速度 Acceleration 150m/s2 沖擊次數 Number of Jolts 3個方向，各10次 10 in each of 3 axes | ||||||||||||
| 6.9 靜電試驗 ESD Test | 在兩次無雜質的靜電釋放暴露中放電.(接觸:±8Kv,空氣:±15Kv)麥克風在10次暴露后無干擾. The microphone under test be discharged between each ESD exposure without ground.(contact::±8Kv,air:±15Kv)There is no interference in operation after 10 times exposure. | ||||||||||||
| 7.注意事項 Cautions | |||||||||||||
| 7.1 焊接型傳聲器的焊接,請使用20W-30W的小型電烙鐵. The soldering copper of smaller type of less 20W shall be applied. | |||||||||||||
| 7.2 焊接時銅箔表面溫度應低于350℃. The temperaure of the working suface of the soldering copper shall be below 350℃. | |||||||||||||
| 7.3 應把駐極體傳聲器固定在散熱良好的裝置臺上進行焊接. E.C.M shall be soldered fixed on the metal block (heat sink) which has the higher Radiation effects heat sink shall contact with each of E.C.M. | |||||||||||||
| 7.4每個焊點的焊接時間應在1～2秒之內. The soldering time for each terminal shall be 1～2 sec. | |||||||||||||
| 7.5 焊接后,各焊點不應出現沙眼現象. The pin hole soldering shall be avoided. | |||||||||||||
| 7.6 駐極體傳聲器容易受靜電破壞,應采取防靜電措施(焊接器具,工作臺,操作人員人體應接地) E.C.M may easily destroyed by the static electricity and the countermeasure for eliminating The staticelectricity (the ground for soldering copper for worktable and for human body) shall be executed. | |||||||||||||
8.包裝規格(Packing Specificatons)
| |||||||||||||
9. 材料及結構清單(List and Structure of Materials)
No. | Part name | Materials Type | Qty | Origin | Manufacture | Remarks |
1 | FELT | Fabric Cloth | 1 | China | Dongguan |
|
2 | Case | AL | 1 | China | Shanghai |
|
3 | Diaphragm | FEP50A | 1 | USA | Dupont |
|
4 | Spacer | Mylar | 1 | China | Hebei |
|
5 | Back plate | Copper Blank | 1 | China | Ningbo |
|
6 | Housping Chamber | Gather Formaldehyde | 1 | China | Changshu |
|
7 | Copper ring | Copper Tube | 1 | China | Changshu |
|
8 | P.C.B | FR-4 | 1 | China | Shuzhou |
|
9 | FET | YD100 | 1 | China | Beijing |
|
10 | Chip Capacitor | 33PF 0402 | 1 | Japan | Murata |
|
