1.產品型號 Model NO. | H4013W003A (-41+-3DB) | |||||||
2.電性能 Electrical Characteristics | ||||||||
序號 NO. | 參數 Parameter | 符號Symbol | 條件 Condition | 范圍 Limits | 單位 Unit | |||
|
|
|
| 最小值Min. | 標準值standard | 最大值Max. |
| |
1 | 尺寸Dimension |
|
| Φ4.0×1.3(H) | mm | |||
2 | 指向性Directivity |
|
| 全指向 Omni directional | ||||
3 | 測試基準test condition |
|
| 2.0V 2.2KΩ | ||||
4 | 靈敏度Sensitivity | S | f=1KHZ, 0dB=1V/Pa | -44 | -41 | -38 | dB | |
5 | 操作電壓Operating Voltage |
|
| 1 |
| 10 | V | |
6 | 輸出阻抗Output Impedance | ZOUT | f= 1KHZ |
|
| 2.2 | KΩ | |
7 | 消耗電流 Current Consumption | IDDS | Vc=2.0V , RL=2.2KΩ |
|
| 500 | uA | |
8 | 信噪比Signal to Noise Ratio | S/N | f=1 KHZ , S.P.L=1Pa | 58 |
|
| dBA | |
9 | 減電壓特性 Decreasing Voltage | △S-VS | Vc=2.0V to 1.5V |
|
| -3 | dB | |
10 | 最大輸入聲壓Max Input Sound Level |
|
|
|
| 110 | dB | |
11 | 環保法規Environmental Regulations |
| RoHS | |||||
We use “Pascal (Pa)”indication of sensitivity as per the recommendation of I.E.C.(International Electro technicalCommission).The Sensitivity of “Pa” will increase 20dB comparing with “ubar” indication. | ||||||||
3.測試電路圖 Circuit Diagram
4. 典型頻率響應曲線 Typical Frequency Response Curve (far field)
5. 外形圖 Outside Drawing
6.可靠性試驗 Reliability Test | ||
經過以下所有試驗在溫度 15℃～35℃和濕度45%～75% 的條件下放置 3 小時后,要求麥克風的靈敏度試驗前后變化在 3dB 以內 | ||
6.1振動試驗Vibration Test | 1分鐘頻率變化從10Hz到55Hz，振幅1.52mm，在三個方向各振動2小時 | |
6.2跌落試驗Drop Test | 分別把包裝的三個面從1米高處自由落到地面上，各10次 | |
6.3高溫試驗Dry Heat Test | 在85℃±3℃環境中維持96小時 | |
6.4低溫試驗Dry Cold | 在-40℃±3℃環境中維持96小時 | |
6.5高溫高濕試驗Damp Heat Test | 在溫度45℃±3℃和相對濕度90﹪～95﹪的環境下維持96小時 | |
6.6溫度循環試驗Temperature Cycles Test | 按如圖溫度和時間循環10次 | |
6.7溫度沖擊試驗Temperature Impact Test | 在-20℃±3℃環境中放置30分鐘，然后在70℃±3℃環境中放置30分鐘，這樣循環10次。 | |
7.儲存環境 Storage environment | ||
7.1貯存溫度/濕度 Storage Temperature/ Humidity ： | -40℃ ～ +85℃ / 35﹪～85﹪RH | |
7.2工作溫度/濕度 Operating Temperature/ Humidity ： | -40℃ ～ +85℃ / 35﹪～85﹪RH | |
8. 測量系統 Measuring System
9. 回流焊條件Reflow Process Condition
| Parameter | Reference | Specification |
Average temperature gradient in preheating |
| 2.5°C/s |
Soak time | tsoak | 2-3 minutes |
Time above 217°C | t1 | Max 60s |
Time above 230°C | t2 | Max 50s |
Time above 250°C | t3 | Max 10s |
Peak temperature in reflow | Tpeak | 255°C (-0/+5°C) |
Temperature gradient in cooling |
| Max -5°C/s |
*After the initial reflow, the MIC shall be resumed to ambient temperature if more reflow required. *Do not perform it more than twice.
*After two SMT tests, the sensitivity of the MIC unit shall change less than ±2dB for initial value *The MIC should be exposed to room temperature for 3 hours and tested.

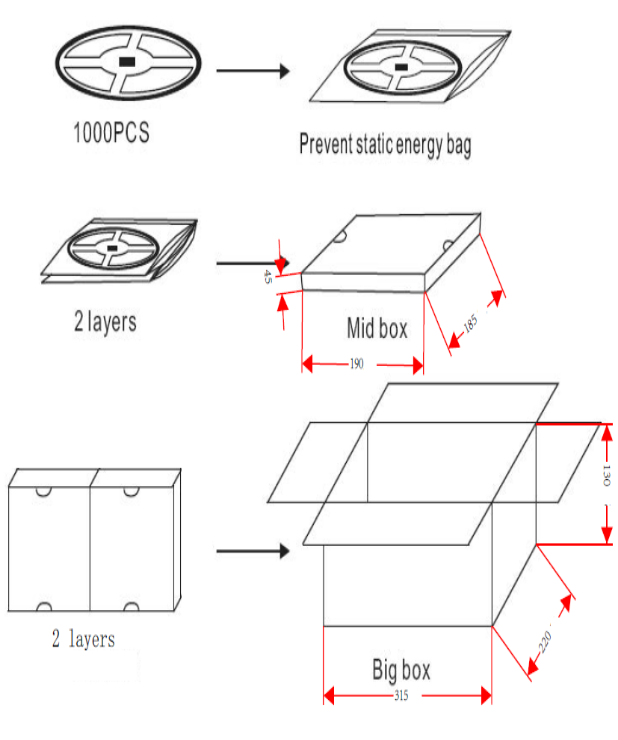

10. 包裝圖 Packing diagram
防靜電袋 |
| 1000PCS |
中盒 | 190x185x4.5 | 20000OCS |
大箱 | 315x220x130 | 400000PCS |
防靜電袋 |
| 1000PCS |
中盒 | 190x185x4.5 | 2000OCS |
大箱 | 230x230x250 | 10000PCS |
11．其他 Other
11.1 注意事項 Matters needing attention
X光掃描 X-Ray Screen
Mic 不能進行X光掃描，如果必須要用X光做BGA掃描，最大劑量需按照下面圖表，Mic 的靈敏度在掃描之前和
之后都需要進行檢測，檢測值需記錄作為參考。
The MIC should not be subjected to x-ray screening if it is absolutely necessary bo do BGA screening
By x-ray.the maximum dose applied to the MIC untshould be restricted per Table 11-1 The sensitivity of
The MIC shall be measured before and afire.The values should be recorded for reference.
Table 11-1 X-Ray Parameter
Parameter | Level Value | Unit |
X-Ray Current 電流 | ﹤0.080 | mA |
Distance 距離 | ﹥0.30 | m |
Duration 時間 | ﹤30 | s |
11.2電離空氣凈化 Ionized air cleaning
不要直接把電離氣槍帶到麥克風的聲音出口。
Do not bring the ionized air gun to microphone’s sound outlet directly.
建議的條件: 距離﹥8cm;時間﹤5 sec
Recommended condition (Distance＞8cm; Time＜5 sec.)
11.3 木板清洗限制 Board wash restrictions
在回火過程后不要清洗板子是很重要的。這會損壞麥克風的。
It is very important not to wash the board after the reflow process. This could damage the MIC.
11.4 真空限制 Vacuum restrictions
非常重要的是不要在麥克風的口洞上拉一個真空。這會損壞麥克風的。
It is very important not to pull a vacuum over the port hole of the MIC. This could damage the MIC.
